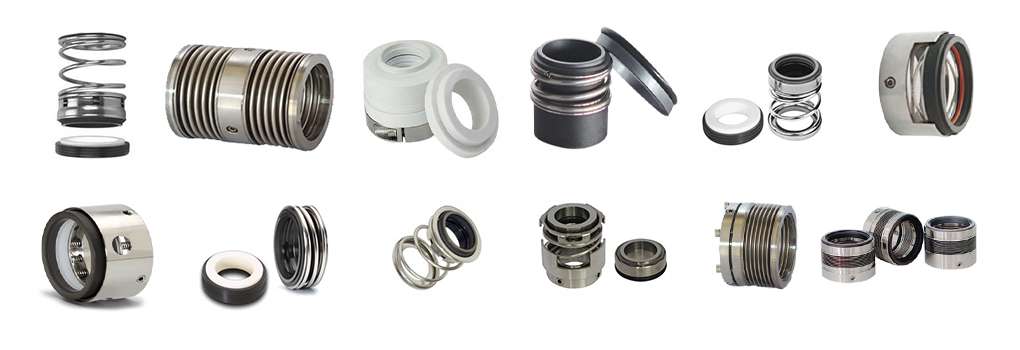

Mechanical seals are essential components used to prevent leakage between rotating and stationary parts in various industrial applications. Different types of mechanical seals are designed to meet specific needs based on factors like pressure, temperature, and fluid type.

Here’s a detailed look at four common types:

Single Spring Mechanical Seals

Description: Single spring mechanical seals utilize a single helical spring to apply the necessary force that maintains contact between the seal faces. This simple design makes them cost-effective and easy to maintain. They are suitable for moderate pressures and temperatures.

Applications: Ideal for pumps, mixers, and compressors where space is limited and where conditions are not extreme.

Key Features:Simplicity: Fewer components, easy to install.
Cost-Effective: Generally more affordable compared to more complex designs.

Multi-Spring Mechanical Seals

Description: Multi-spring mechanical seals feature multiple small springs arranged around the seal’s circumference. This design distributes sealing force evenly, enhancing durability and performance under higher pressure and temperature conditions.

Applications: Commonly used in applications where consistent sealing performance is critical, such as in high-pressure pumps and agitators.

Key Features:Even Force Distribution: Reduces wear on seal faces.
Enhanced Performance: Suitable for higher pressure applications.

Wave Spring Mechanical Seals

Description: Wave spring seals employ a wave-shaped spring to provide sealing force. The flexibility of the wave spring accommodates axial movements and helps maintain pressure, making them ideal for compact designs.

Applications: Best for applications requiring flexibility and space efficiency, where shaft movement is a factor.

Key Features:Compact Design: Space-saving due to wave spring configuration.
Flexibility: Compensates for axial movements.

Rubber Bellows Mechanical Seals

Description: Rubber bellows seals use a rubber bellows to absorb vibrations and movements while maintaining a reliable seal. They are effective in environments with significant shaft movement or vibrations.

Applications: Suitable for lower-pressure environments and applications with significant shaft displacement.

Key Features:Flexibility: Accommodates shaft movement and vibrations.
Cost-Effective: Generally used in less demanding conditions.
