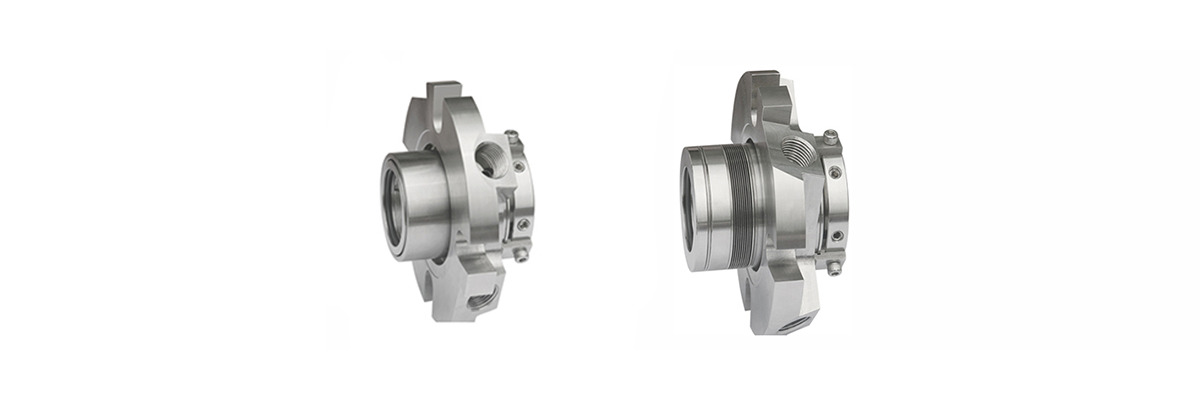

Double Cartridge seals

Components of Double Cartridge Seals

• Dual Sealing Faces: Each seal has a rotating and a stationary face, creating two barriers against leakage. The rotating face is attached to the shaft, while the stationary face remains fixed.
• Spring Mechanisms: Springs apply pressure to keep the sealing faces in contact, ensuring effective sealing even under variable conditions.
• O-Rings and Gaskets: These components provide additional sealing around the cartridge, preventing leakage around the outer edges.
• Seal Housing: The entire assembly is housed in a cartridge that simplifies installation and alignment.

 Working Principle

Double cartridge seals operate by creating two separate sealing chambers. In the event of leakage at the first seal, the second seal acts as a backup, containing any fluid and preventing it from escaping into the environment. This design significantly enhances safety and reliability.

 Applications

• Chemical Processing: Ideal for handling aggressive or hazardous chemicals where leak prevention is crucial.
• Pharmaceuticals: Ensures the integrity of sensitive processes, maintaining hygiene and preventing contamination.
• Food and Beverage: Used in processes requiring strict adherence to safety and sanitary standards.
• Oil and Gas: Commonly employed in environments where safety and environmental regulations are stringent.
• Pulp and Paper: Protects against leakage in applications involving corrosive materials.

Benefits

• Enhanced Leak Protection: The dual sealing mechanism offers a high level of protection against leaks, reducing environmental and safety risks.
• Increased Equipment Lifespan: By minimizing exposure to fluids and potential contaminants, double cartridge seals help extend the life of equipment.
• Simplified Maintenance: Cartridge design allows for easy replacement without complex alignment, reducing downtime.
• Versatility: Suitable for a wide range of applications and fluids, including those that are corrosive, viscous, or abrasive.
• Cost-Effectiveness: Reducing leaks can lead to lower maintenance and cleanup costs, as well as compliance with regulatory standards.

Installation and Maintenance

• Easy Installation: The cartridge design simplifies installation, ensuring correct alignment without the need for special tools.
• Regular Inspection: While double cartridge seals are designed for durability, regular inspections are recommended to check for wear or damage.
• Replacement: When maintenance is needed, the entire cartridge can be replaced quickly, minimizing operational interruptions.

Double cartridge seals are a reliable and effective solution for industries requiring high levels of leak protection and safety. Their dual sealing design, ease of installation, and versatility make them a preferred choice in various demanding applications. By investing in double cartridge seals, businesses can enhance their operational efficiency, comply with regulations, and protect their equipment and the environment.
